CT Gold @ Macpherson Floor Plans
Explore every level of CT Gold @ Macpherson. 63 production units and 3 industrial canteens across 8 storeys of freehold B1 industrial space. Ceiling heights up to 7.35m, heavy floor loading, and mezzanine options on selected levels.
Designed for Industrial Scale
CT Gold @ Macpherson is laid out with the working needs of industrial tenants in mind. Lower floors (Levels 1-4) feature the highest ceilings and heaviest floor loading, with direct vehicle ramp access for loading and unloading. Upper floors (Levels 5-8) are accessed via passenger lifts and the service lift, with the service lift capable of carrying up to 2.8 tonnes.
Mezzanine options on Levels 1, 3, and 4 allow tenants to add usable space without paying for full additional floor plates. These spaces are ideal for office use, storage, or break rooms above a main production floor.
The three industrial canteens on Level 1 offer dedicated food preparation spaces with proper kitchen infrastructure, wash areas, serving counters, and seating. Unlike retrofitted food operations in standard B1 buildings, these canteens were designed from the ground up for commercial kitchen use.
Use the tabs below to navigate between floors. Click the Download Brochure button to get the full detailed brochure with unit dimensions and specifications. For the complete property overview, see the factsheet, or read about the location and connectivity.
CT Gold @ Macpherson Floor Plans
Explore the floor plans for every level of CT Gold @ Macpherson. 63 production units and 3 industrial canteens across 8 storeys of freehold B1 industrial space.

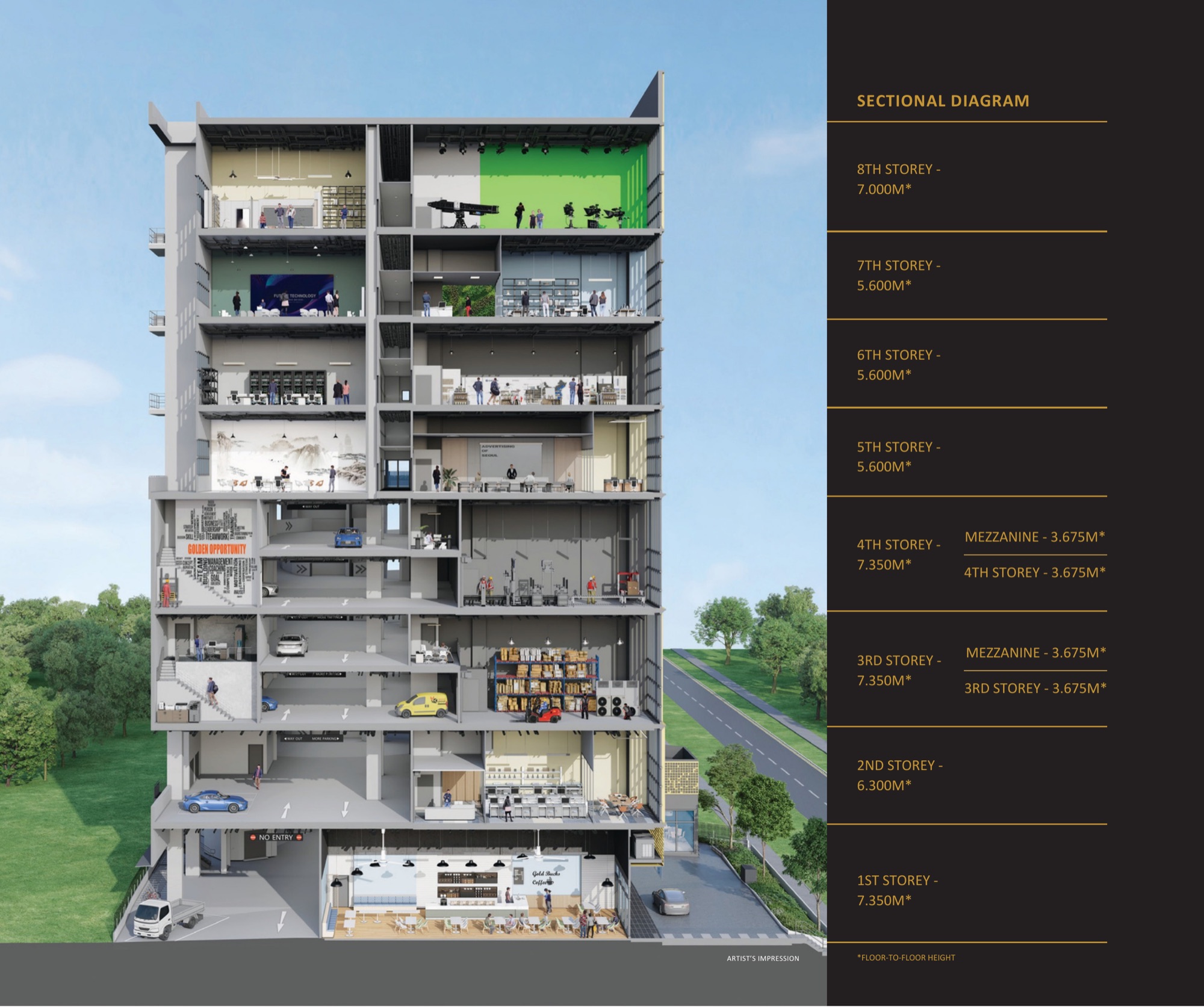

CT Gold @ Macpherson - Sectional Plan
What's on Each Floor
A written description of every level at CT Gold @ Macpherson, matching the floor plans above.
Sectional Plan
A cross-section view of CT Gold @ Macpherson showing all 8 storeys with their respective ceiling heights. Levels 1, 3, and 4 feature the highest ceilings at 7.35m with mezzanine options. Level 8 offers 7.0m, Level 2 offers 6.3m, and Levels 5-7 offer 5.6m.
Level 1
The ground floor houses production units alongside three industrial canteens. The canteens are configured for food operations with up to 8 stalls and seating for 140. Direct ramp access allows vehicle loading on this level. Ceiling height: 7.35m with 10 KN/m2 floor loading and 100A three-phase power.
Level 1 Mezzanine
Mezzanine space above Level 1 adds usable area for selected units. Ideal for office space, storage, or operational area above the ground floor.
Level 2
Production units arranged around the central loading/unloading area. Ceiling height: 6.3m with 7.5 KN/m2 floor loading and 63A three-phase power. Suited to assembly, light production, or storage operations.
Level 3
Production units with partial ramp-up access for direct vehicle loading. Ceiling height: 7.35m with 10 KN/m2 floor loading and 100A three-phase power. Matches Level 1 in structural capability for heavy industrial use.
Level 3 Mezzanine
Mezzanine space above Level 3 adds usable area for selected units, suitable for office or storage above the main production floor.
Level 4
Production units matching the Level 3 configuration. The last floor with partial ramp-up access. Ceiling height: 7.35m with 10 KN/m2 floor loading and 100A three-phase power.
Level 4 Mezzanine
Mezzanine space above Level 4, providing additional usable area for tenants who need more square footage than the main floor alone.
Level 5
Production units arranged around the communal pavilion with BBQ pit. The pavilion is a shared amenity for all tenants, offering an outdoor gathering space at mid-building level. Ceiling height: 5.6m with 7.5 KN/m2 floor loading.
Level 6
Production units with standard B1 specifications. Ceiling height: 5.6m with 7.5 KN/m2 floor loading. Suited to e-commerce fulfilment, assembly, or storage operations.
Levels 7 & 8
The upper floors house the remaining production units. Level 8 features the highest non-ground ceiling at 7.0m with 10 KN/m2 floor loading and 100A three-phase power, suitable for operations that need vertical clearance. Level 7 uses the standard 5.6m ceiling configuration.
Find the right floor for your operation
Book a viewing to walk through the showflat and discuss which level suits your business.
